MEUS Racing ME-8B RC Transmitter 8CH 2.4GHz & Receiver with Coach Mode for 1/8 1/10 1/18 1/24 TRX4 TRX4M SCX10 SCX24
MEUS Racing ME-8B RC Transmitter 8CH 2.4GHz & Receiver with Coach Mode for 1/8 1/10 1/18 1/24 TRX4 TRX4M SCX10 SCX24

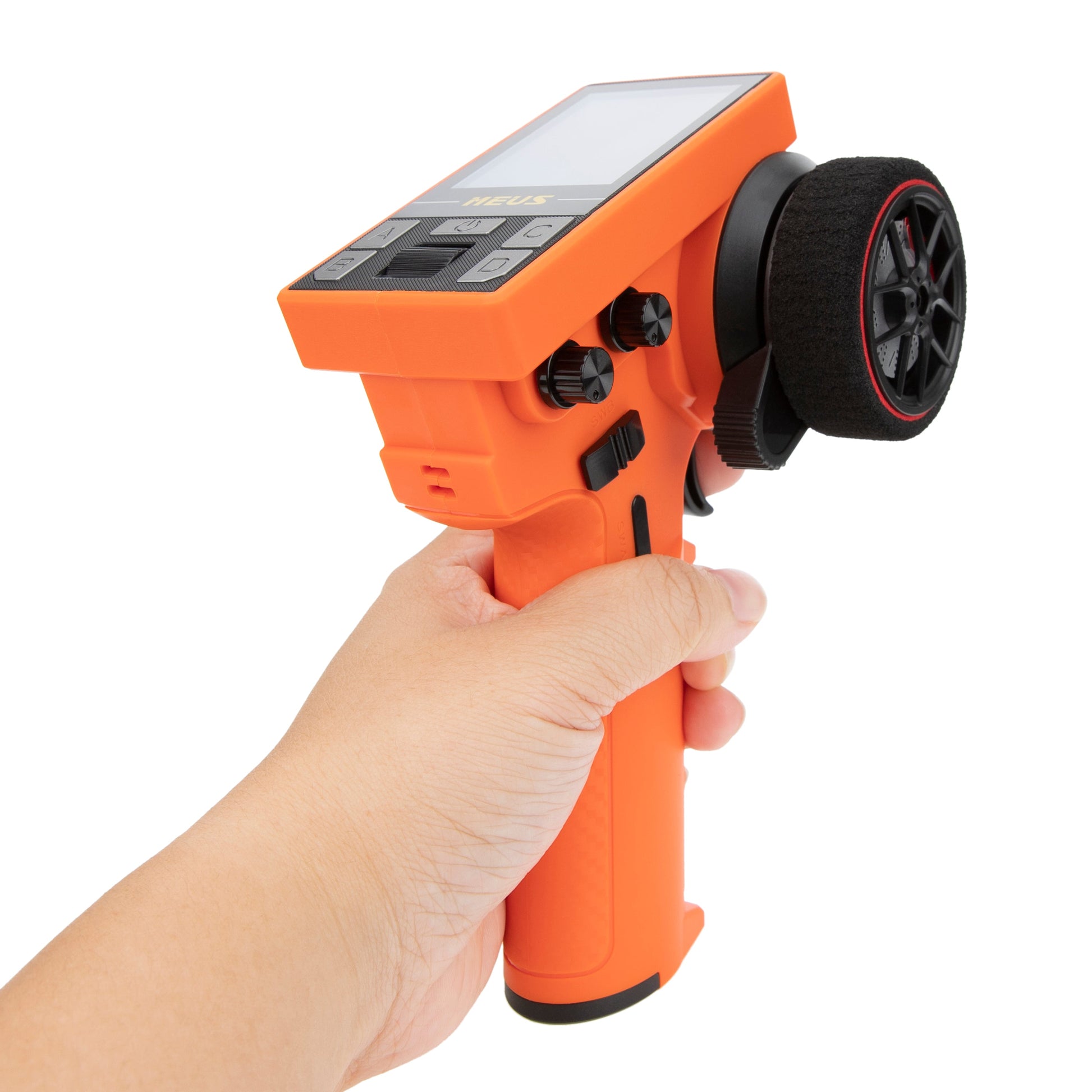

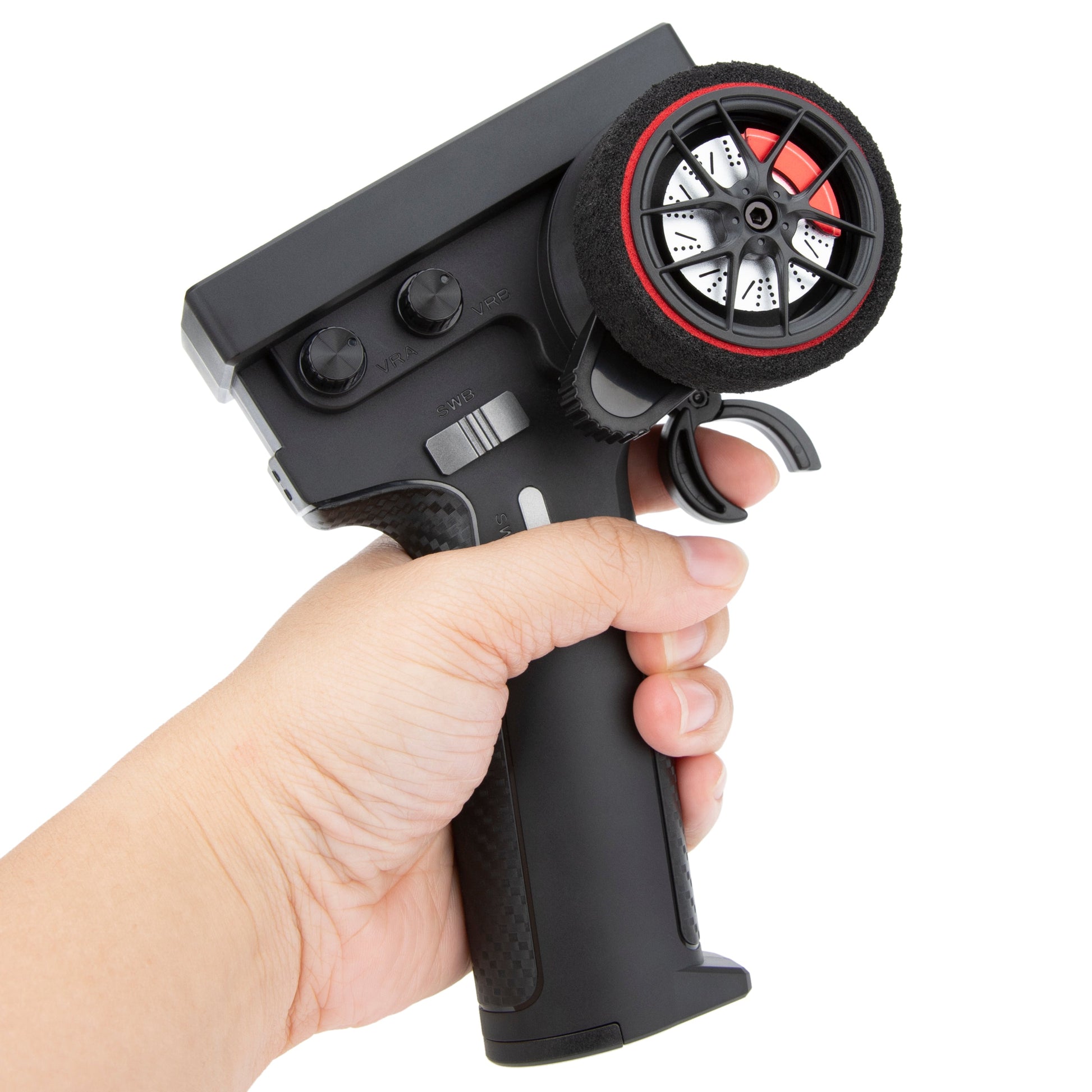

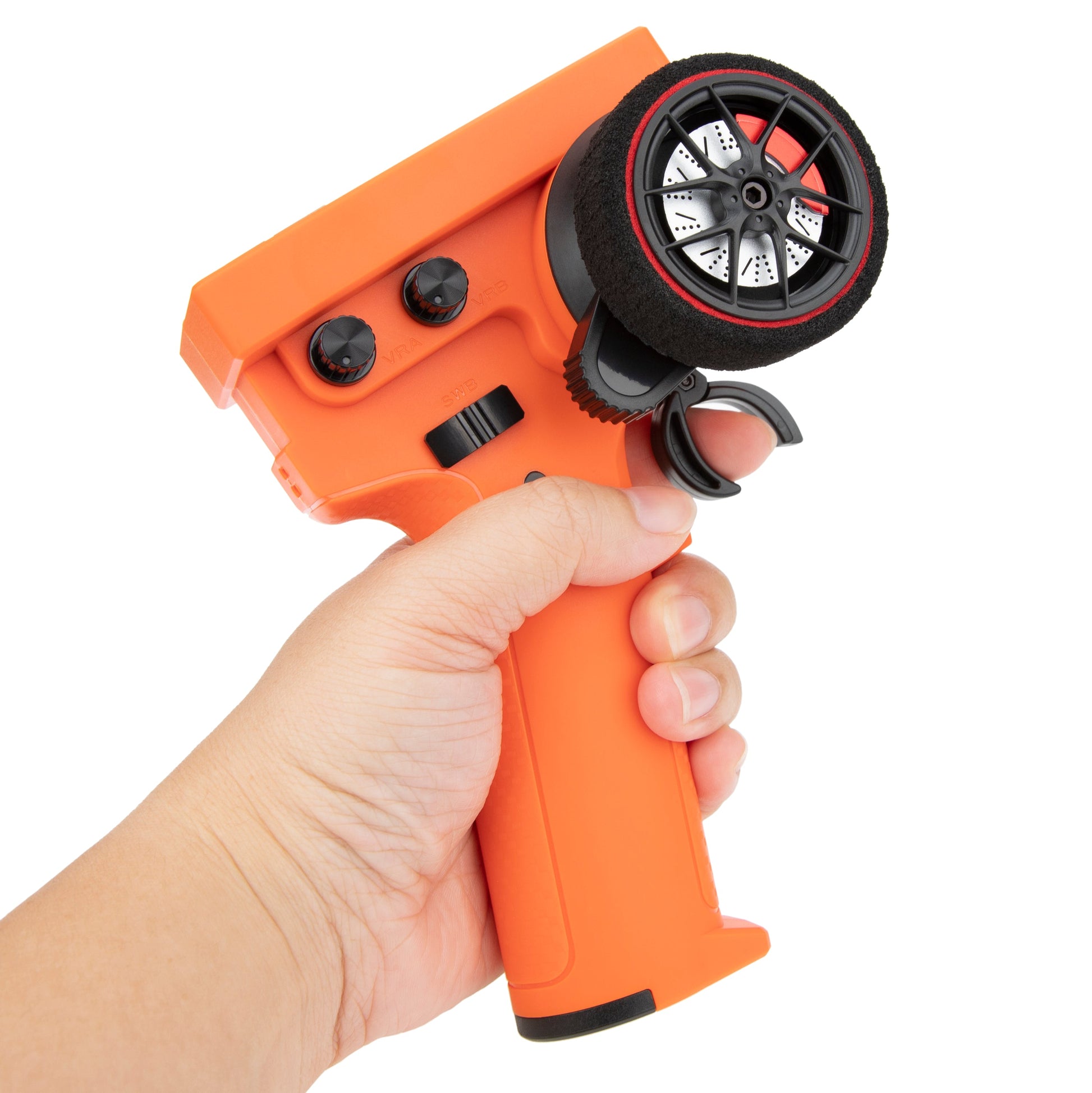

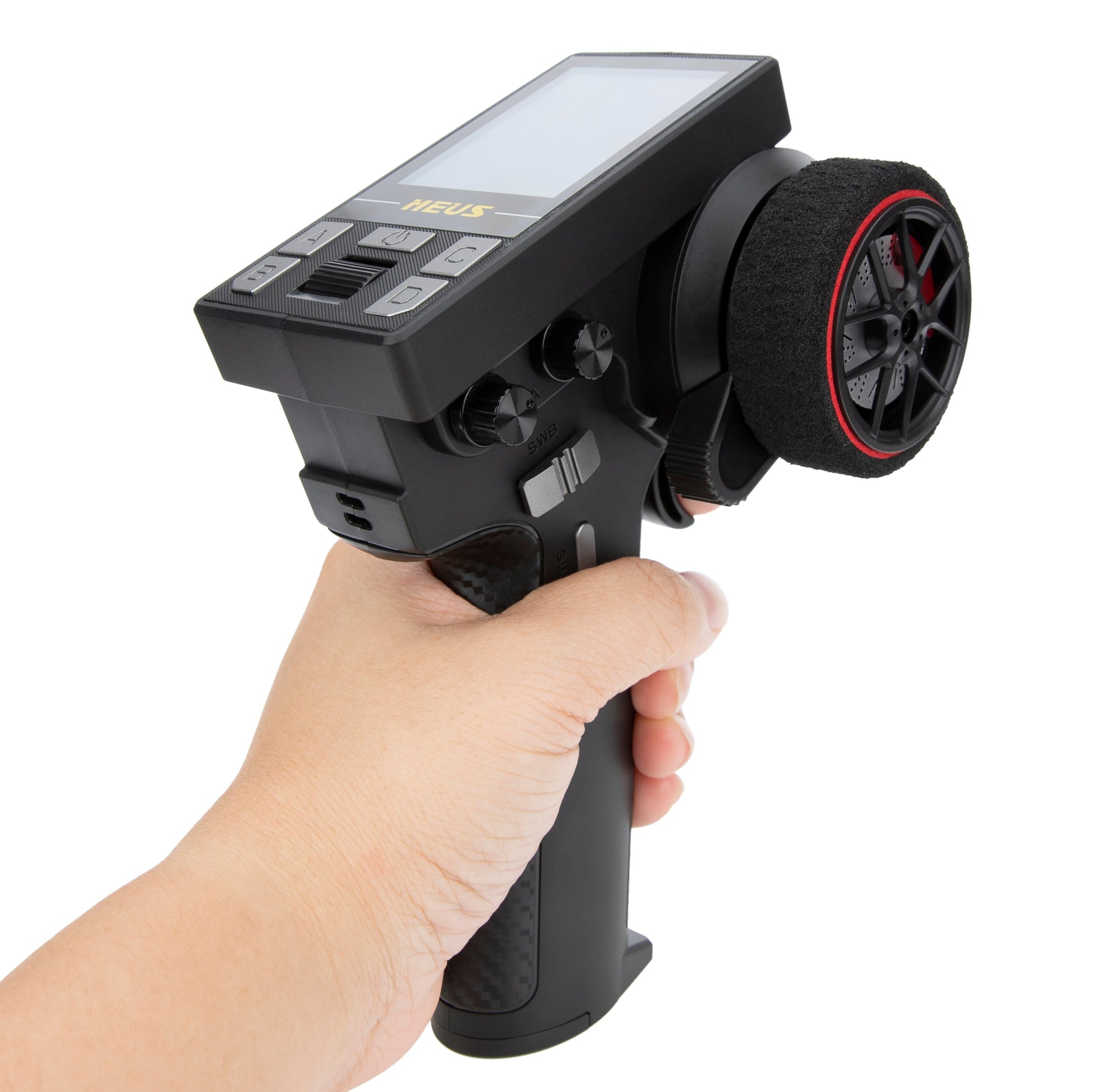

MEUS Racing ME-8B RC Transmitter: 8 Channels, 2.4GHz with Receiver and Coach Mode, Designed for 1/8, 1/10, 1/18, and 1/24 RC crawler cars, boats, and upgrade parts for TRX4, TRX4M, SCX10, and SCX24.

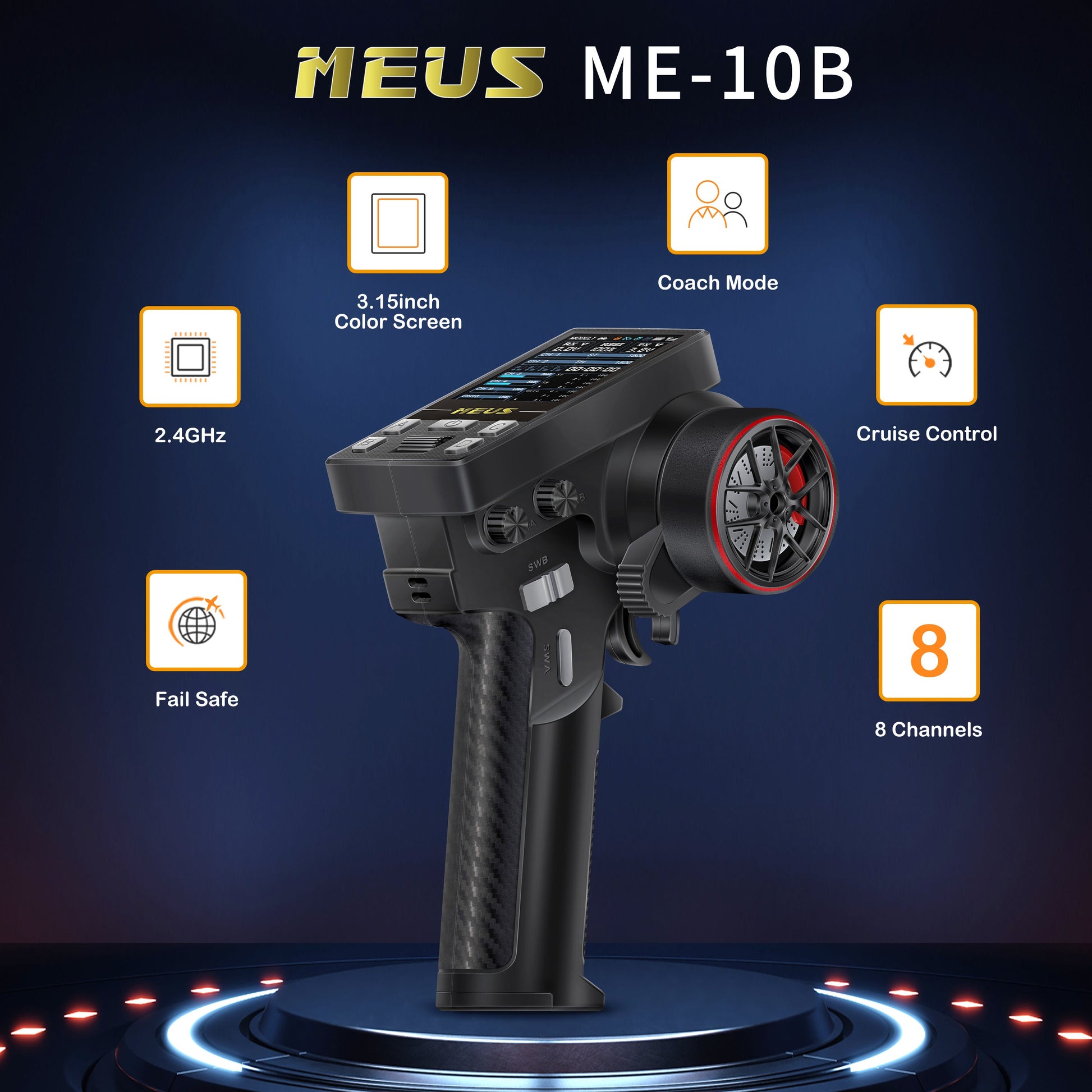

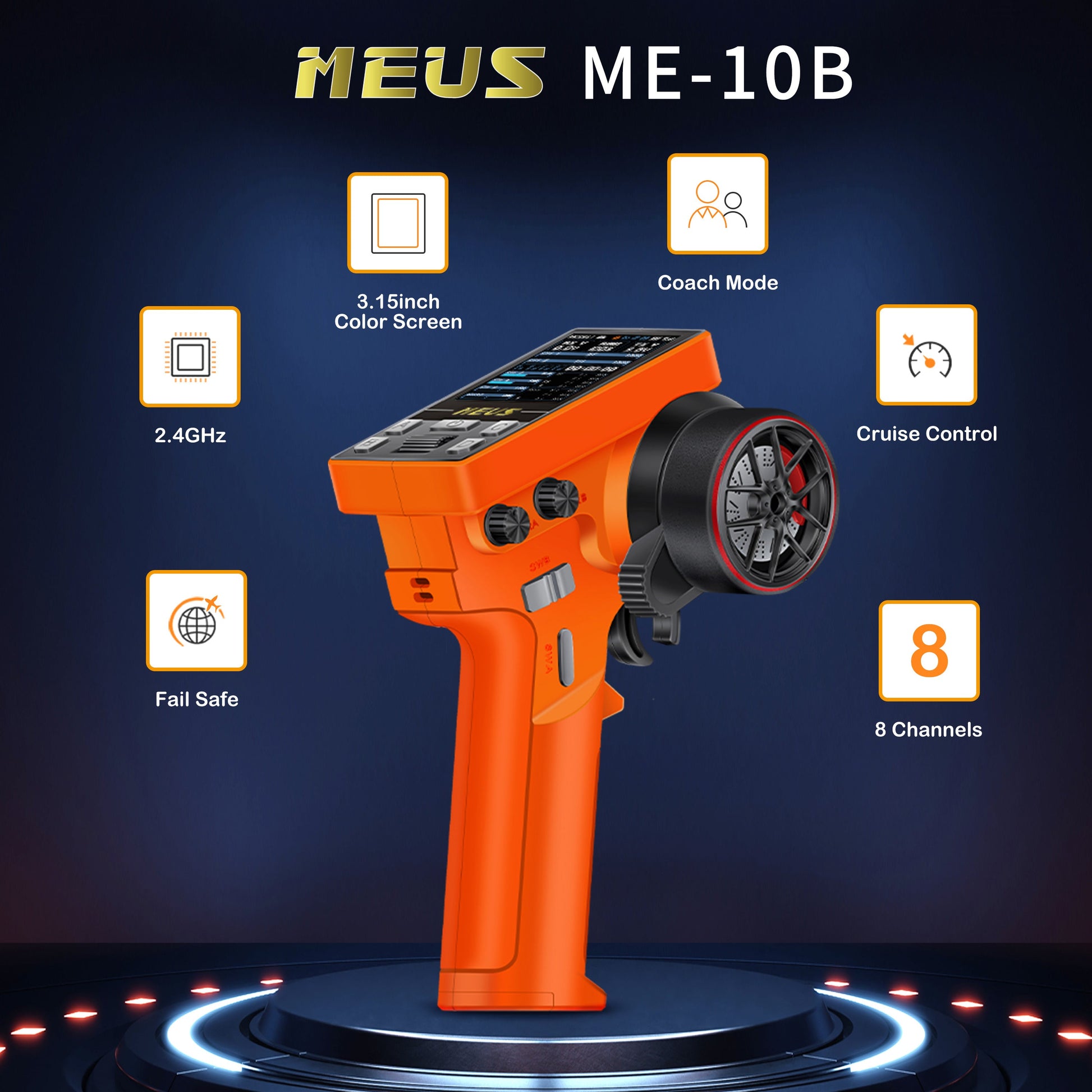

Key Features:
- Self-developed 2.4GHz Technology: Offers stable performance and enhanced anti-interference capabilities.
- Fast Response Time: This product features a power amplifier that extends the remote control distance up to 300 meters on the ground and 800 meters in the air within 3 seconds.

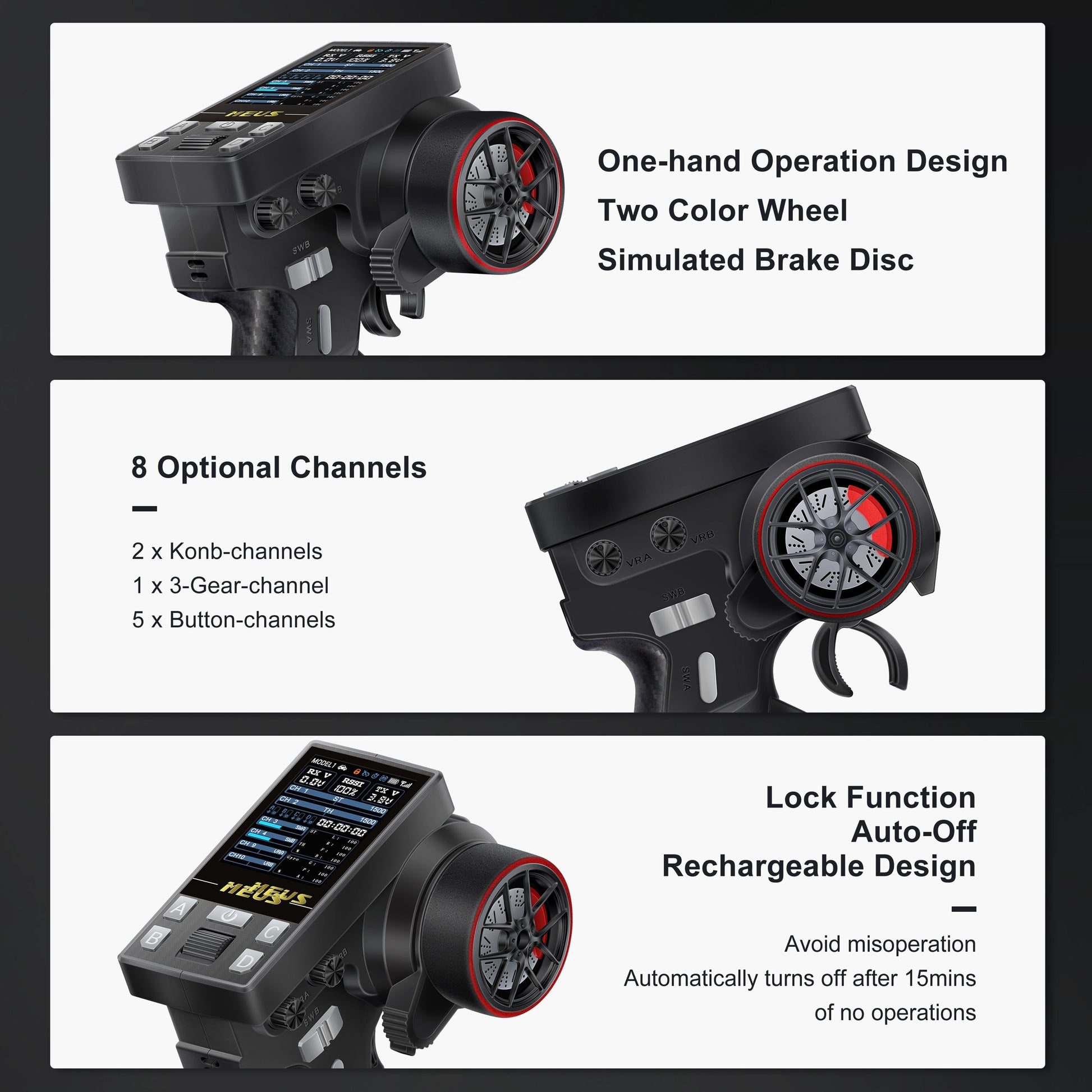

- 8 Channels: Includes one 3-gear channel, two knob channels, and five button channels for versatile operations.

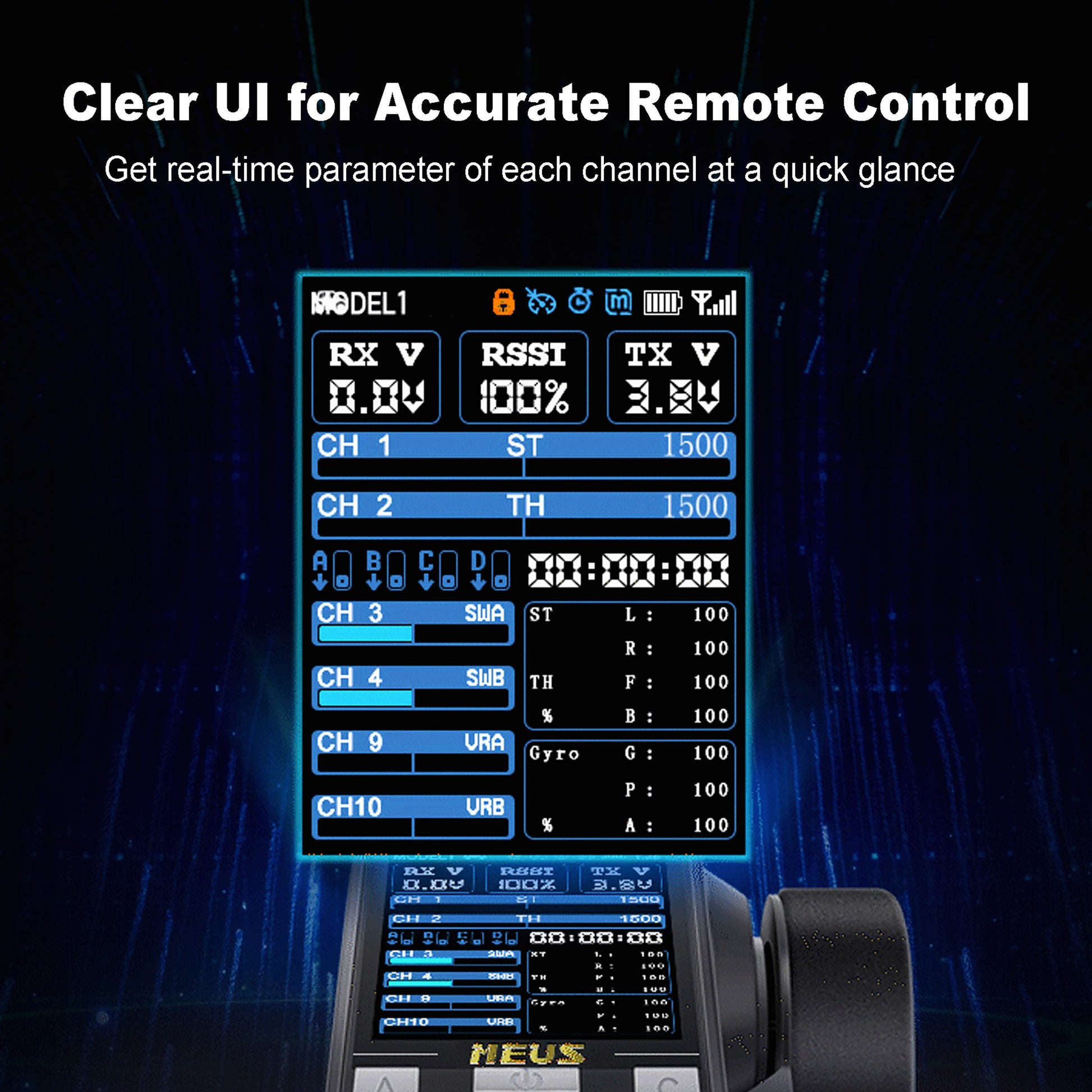

- Clear User Interface: Equipped with a color screen that displays real-time parameters for each channel at a glance.

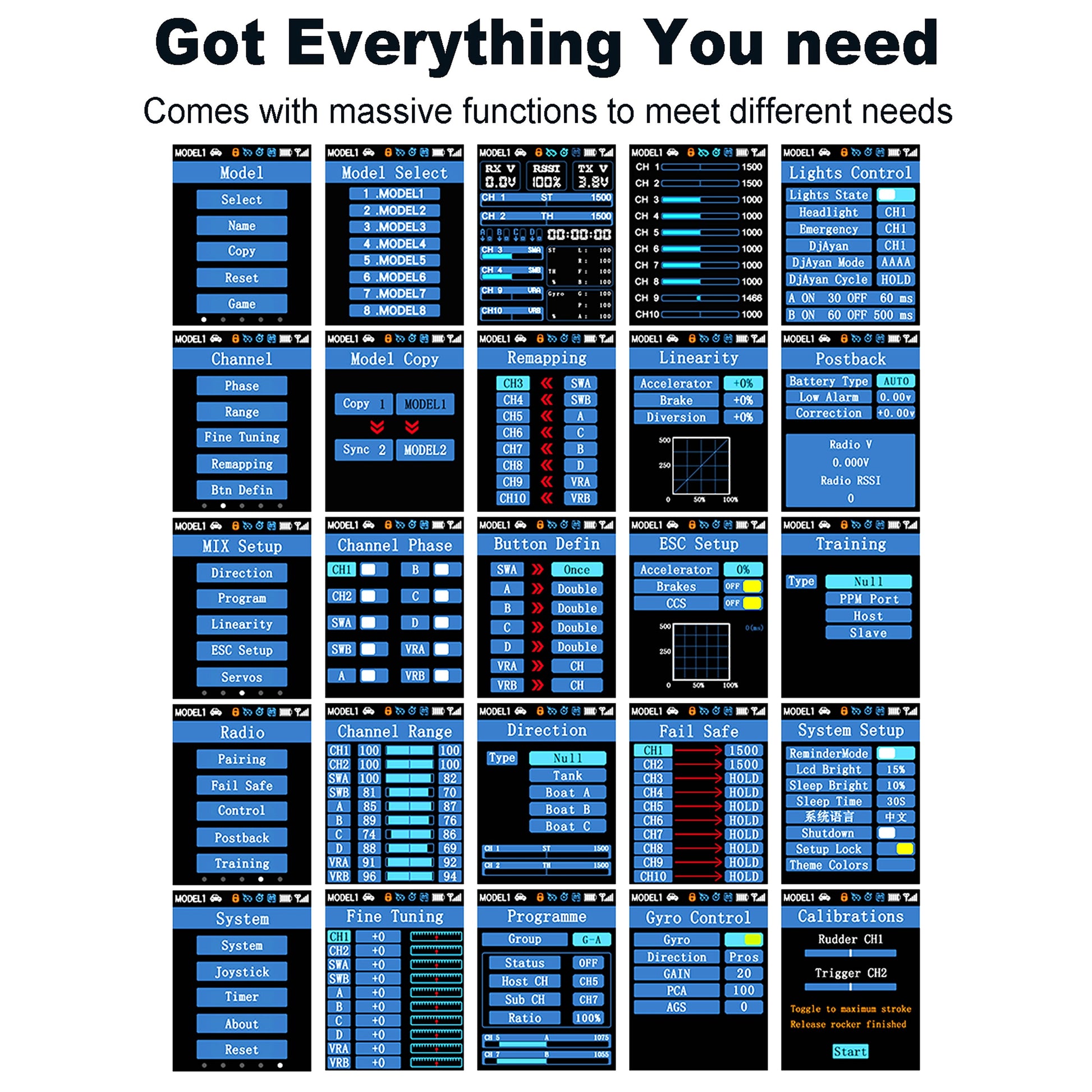

- Robust Functionality: This RC transmitter includes fail-safe features, cruise control, low-voltage warnings, and a wide range of customizable functions, making it suitable for beginners and advanced users.
- Coach Mode: Allows two transmitters to control a single car simultaneously, with one transmitter having priority. This feature is great for training or engaging in parent-child activities.
- User-Friendly and Ergonomic Design:
(1) Comes with a lock function to prevent accidental operations, a 15-second auto-off feature, and is rechargeable.

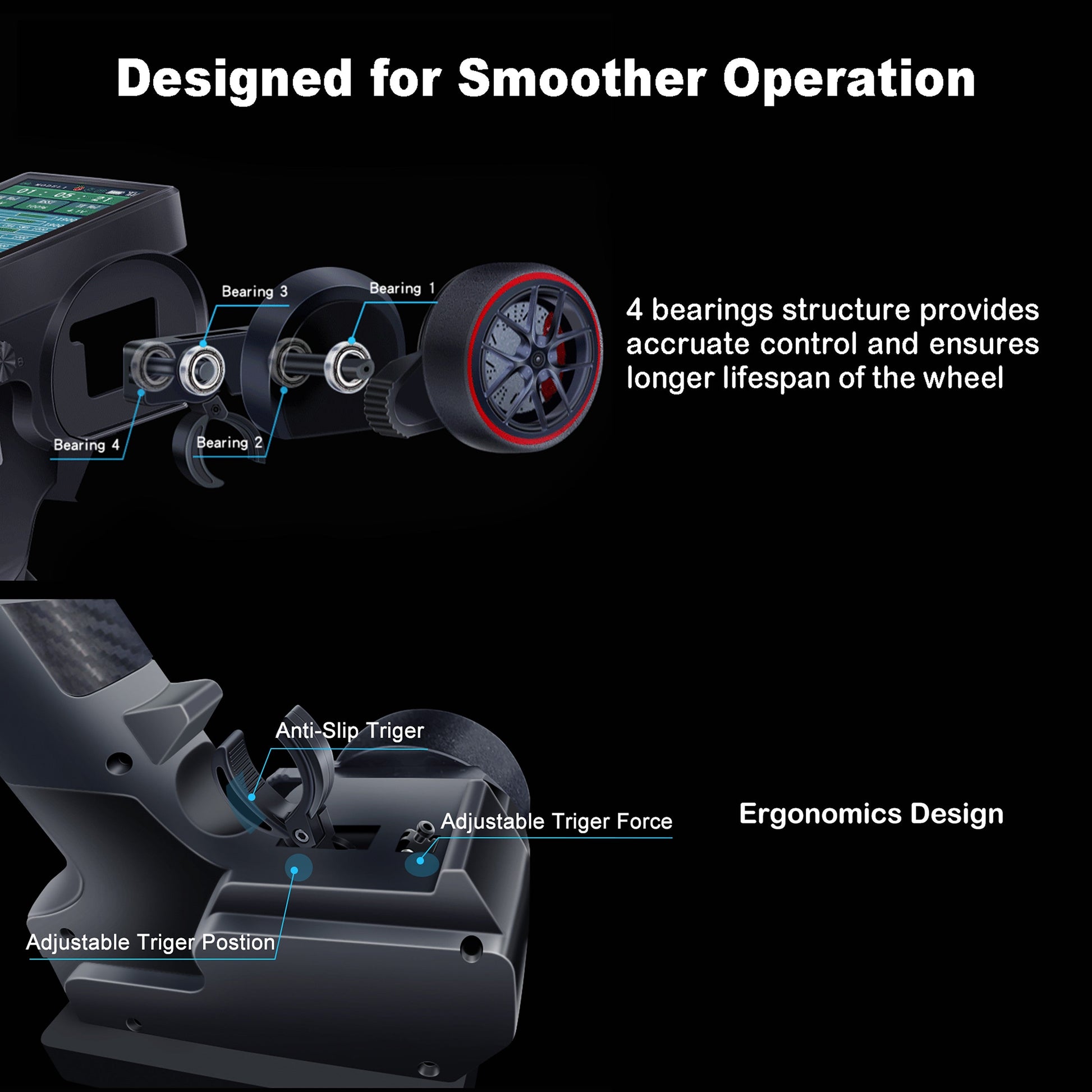

(2) The 4-bearing wheel and anti-slip trigger, which can be adjusted for force and position, ensure smoother and more precise control.
- Versatile Terrain Compatibility: This RC transmitter and receiver kit is suitable for both off-road and on-road use, including RC crawlers, RC short course cars, RC boats, RC motorcycle
The transmitter can be used on 8 model cars and stores all the different settings for each car.
Manual>>ME-8B RC Transmitter Manual

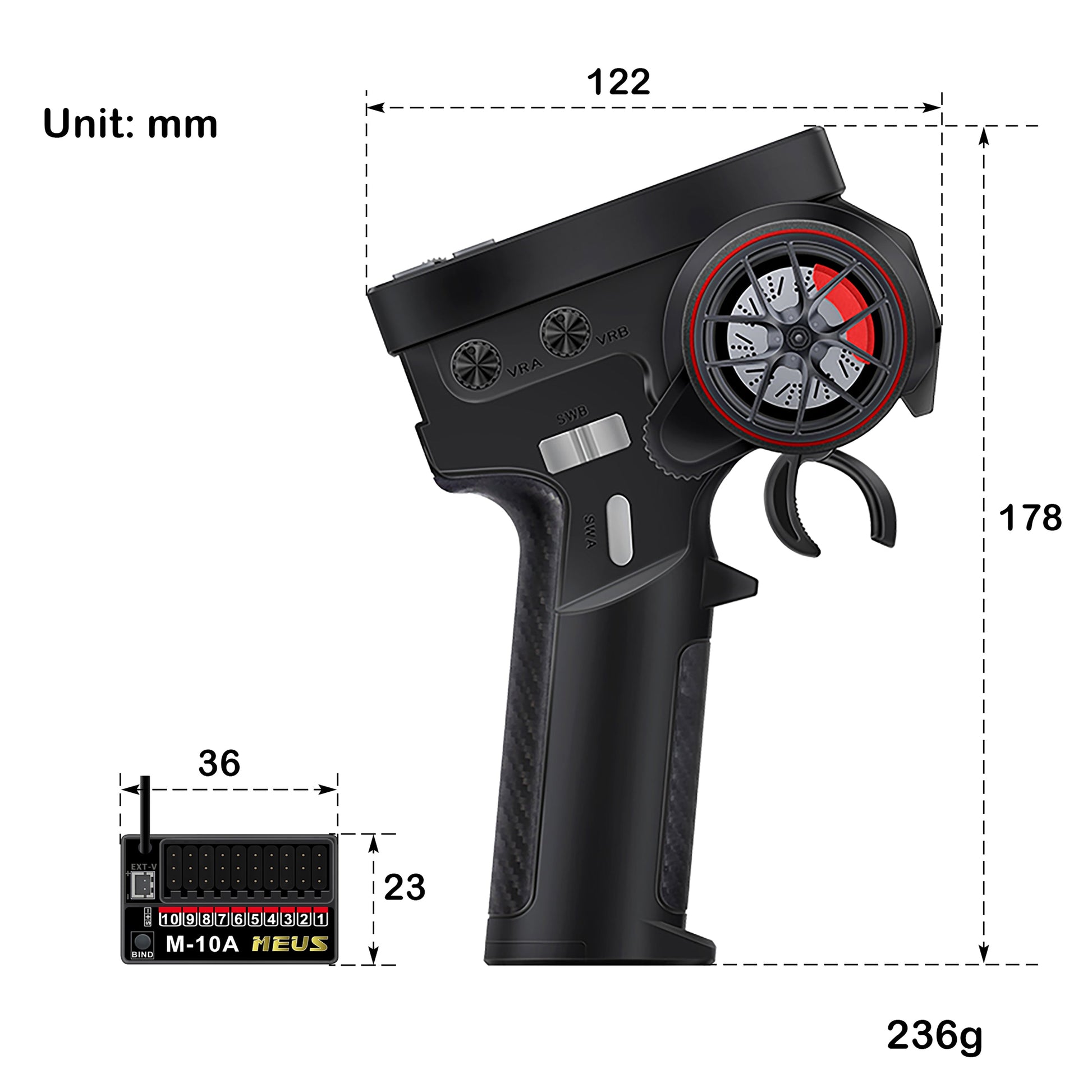

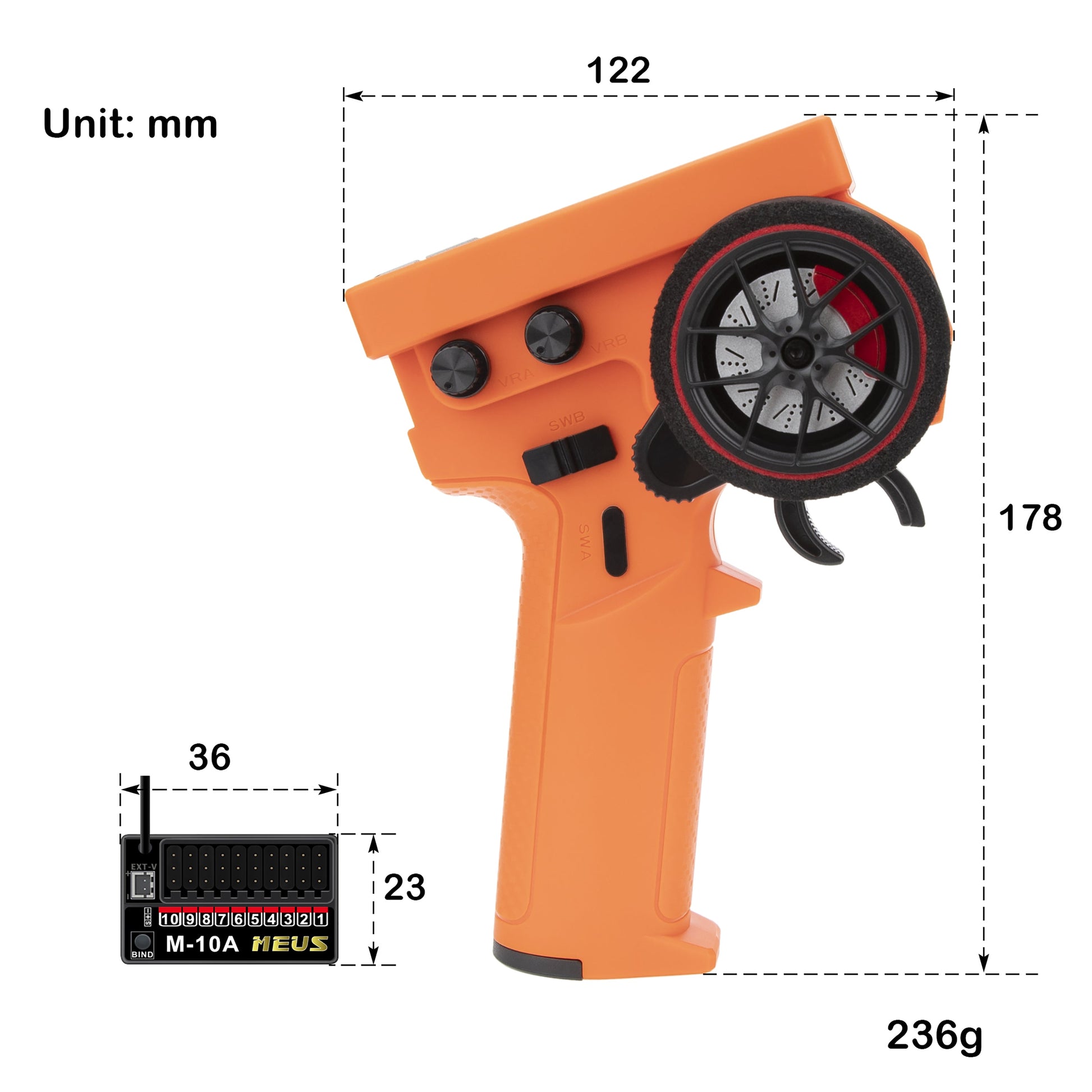

Specifications of Transmitter:
- Suitable for Model Type: RC cars, RC boats, RC tanks, etc.
- Channels: 8
- Frequency range: 2.4GHz
- RF Power: Less than 20dbm
- Response Time: PWM≤20MS
- Receiving sensitivity: -96dbm
- Transmitting power: 160MA-300MA
- Battery: 18650 (Rechargeable)
- Power supply: DC 3.7V-9V
- Net Weight: 190g
- Control Distance: about 300m on the ground, 800 on the air.

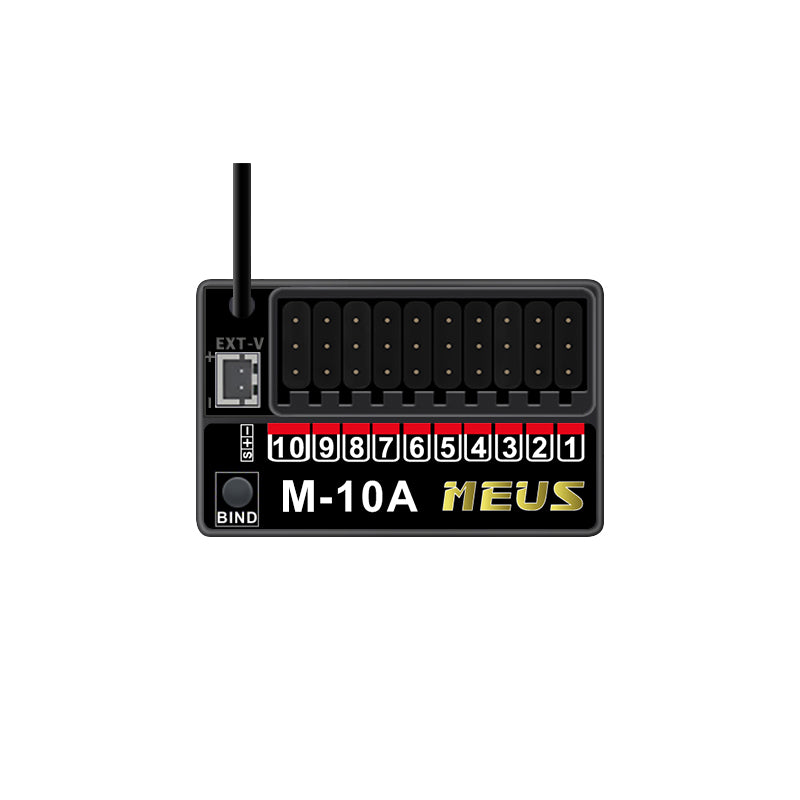

M-10A Receiver's Specifications(comes with transmitter):
- Model Number: M-10A
- Channels: 10
- Frequency range: 2.4GHz
- Working current: 35mA
- Receiving distance: 300-800m
- Input voltage: DC 4V-9V
- Voltage Feedback: 0-27V (300m)
- Dimensions: 36*23*13mm
- Gyro: No
- Weight: 8.5g
- Application: RC cars, RC boats, RC tanks, etc.

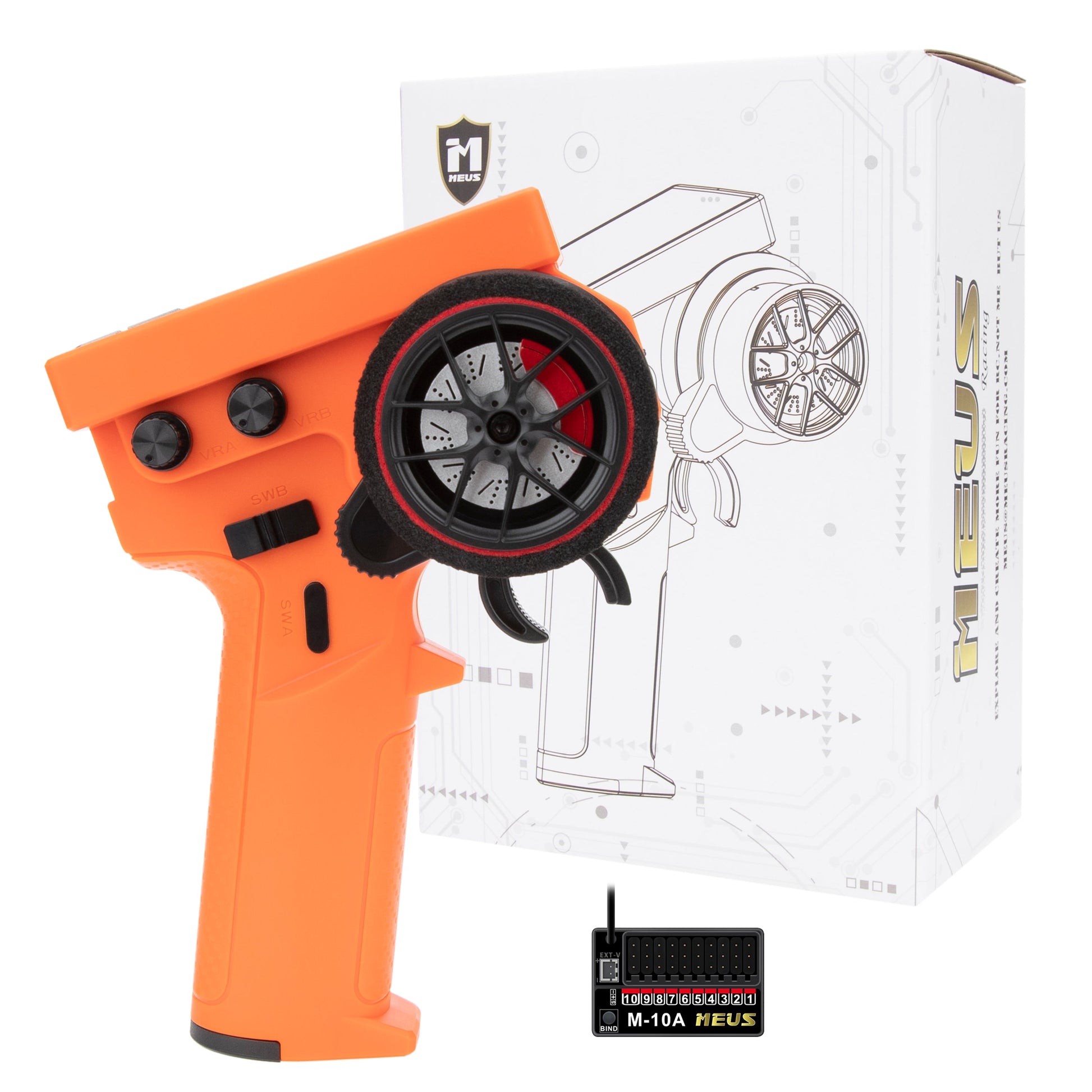

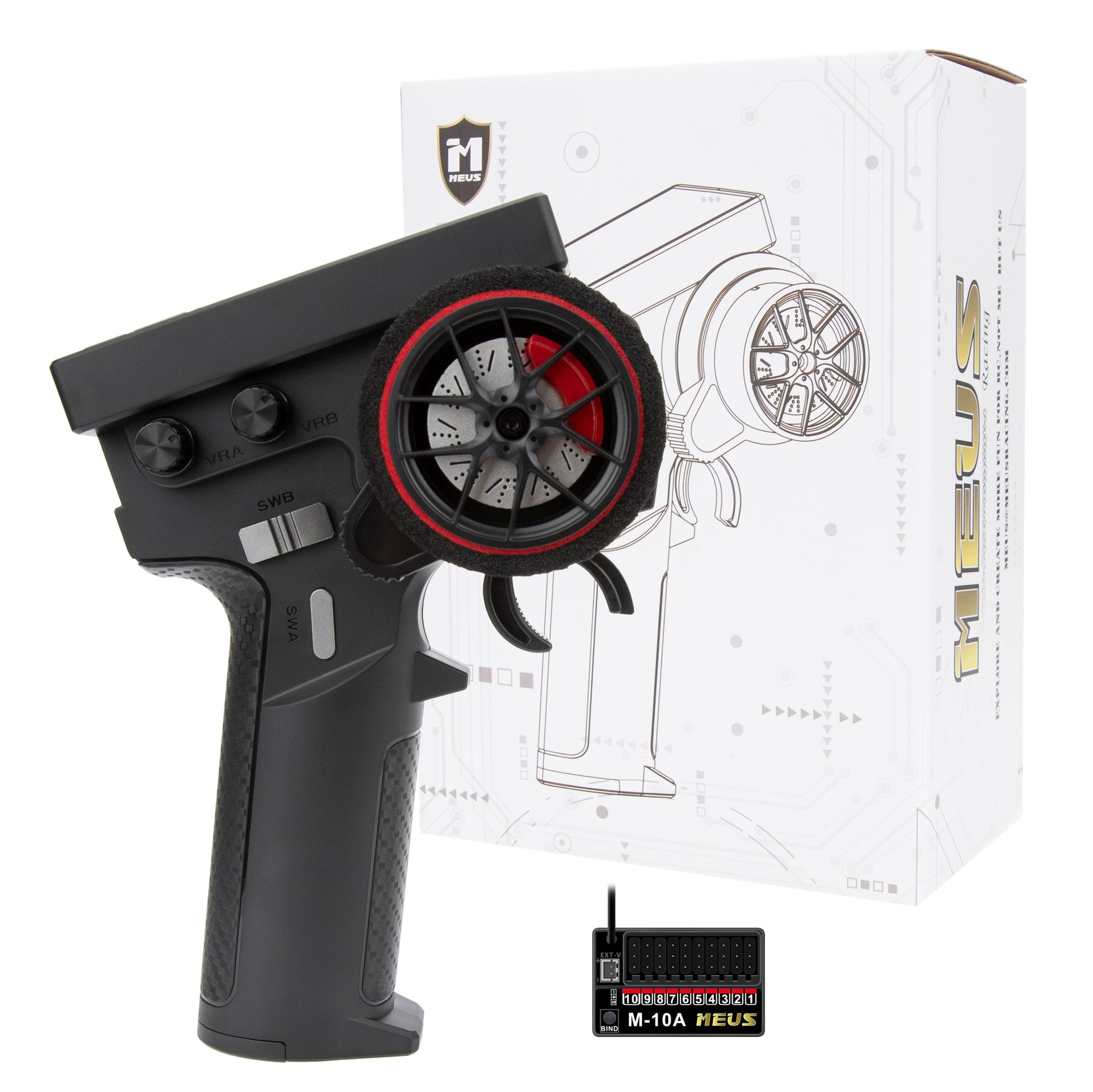

Package List:
- 1 × RC Transmitter
- 1 × M-10A Receiver
- 1 × 18650 Rechargeable Battery
- 1 × User Manual
- 1 × Type-c data cable
- 1 × Voltage return line
Other Channels Receivers:

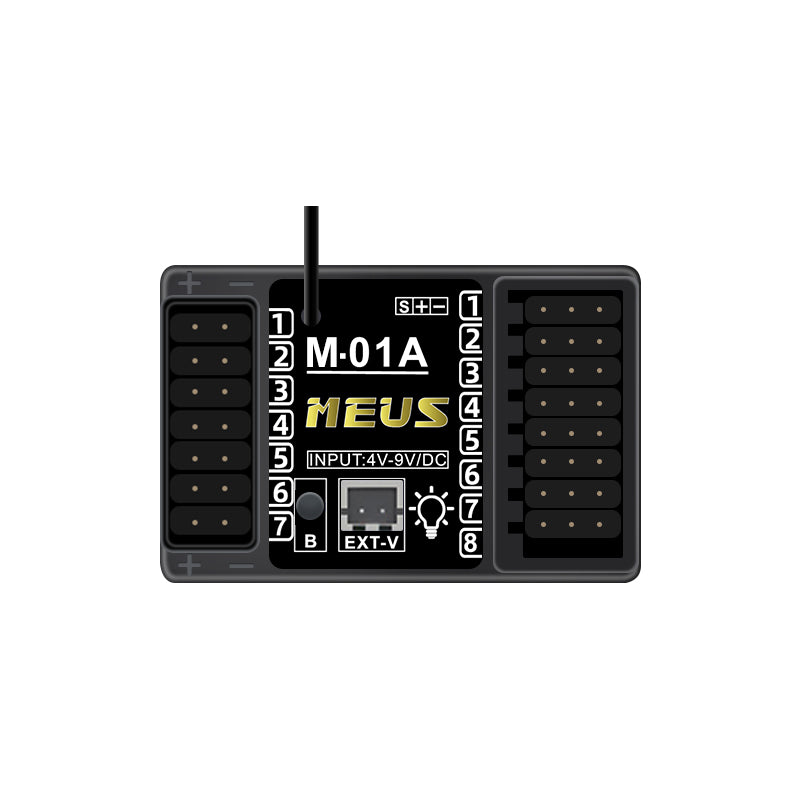

M-01A Receiver's Specifications:
- Model Number: M-01A
- Channels: 8
- Frequency range: 2.4GHz
- Working current: 35mA
- Receiving distance: 300-800m
- Info Feedback: Signal/Voltage(300m)
- Input voltage: DC 4V-9V
- Voltage Feedback: 0-27V (300m)
- Dimensions: 38*25*13mm
- Gyro: No
- Weight: 10g
- Application: RC cars, RC boats, RC tanks, etc.
- Other functions: With light control (Can control turn signals and brake lights)

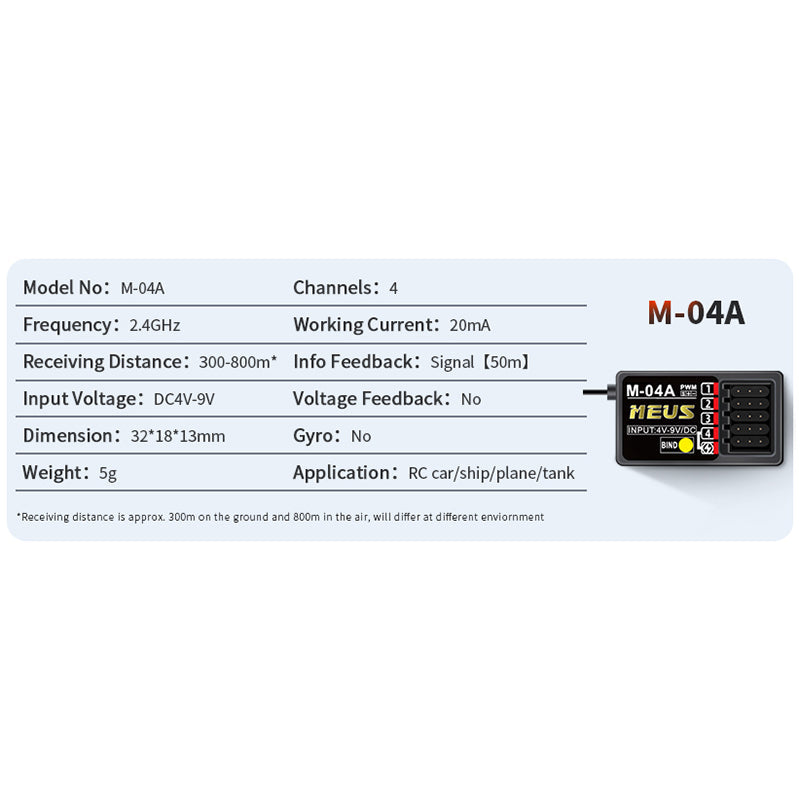

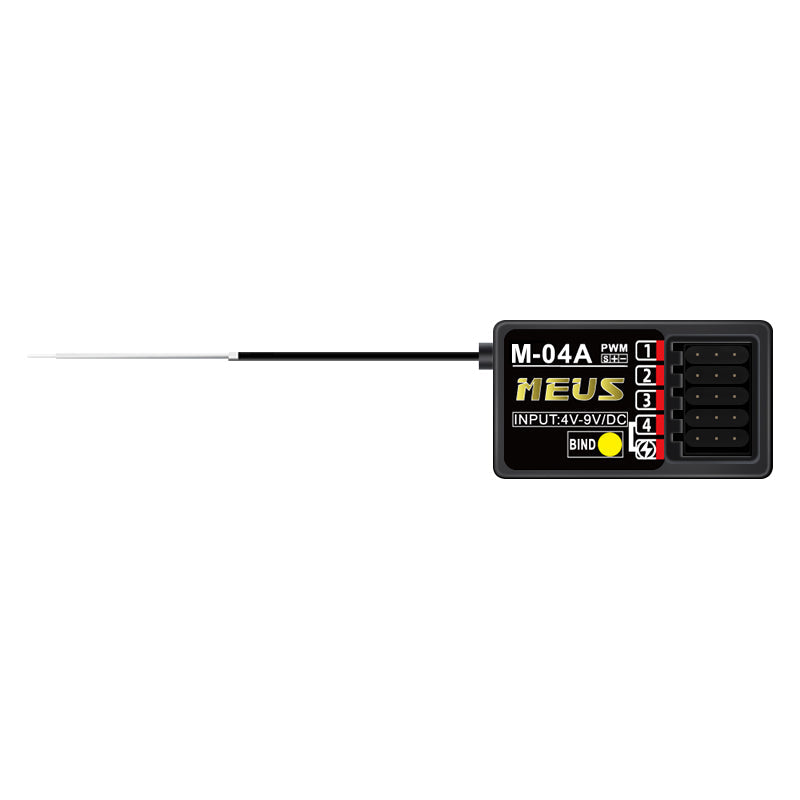

M-04A Receiver's Specifications:
- Model Number: M-04A
- Channels: 4
- Frequency range: 2.4GHz
- Working current: 20mA
- Receiving distance: 300-800m
- Info Feedback: Signal (50m)
- Input voltage: DC 4V-9V
- Voltage Feedback: No
- Dimensions: 32*18*13mm
- Gyro: No
- Weight: 5g
- Application: RC cars, RC boats, RC tanks, etc.

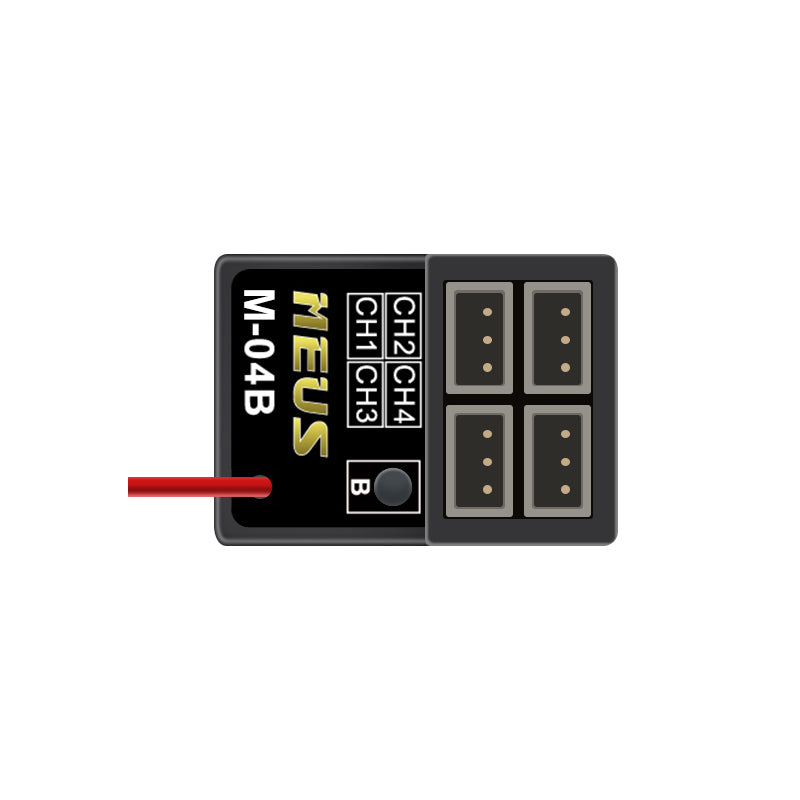

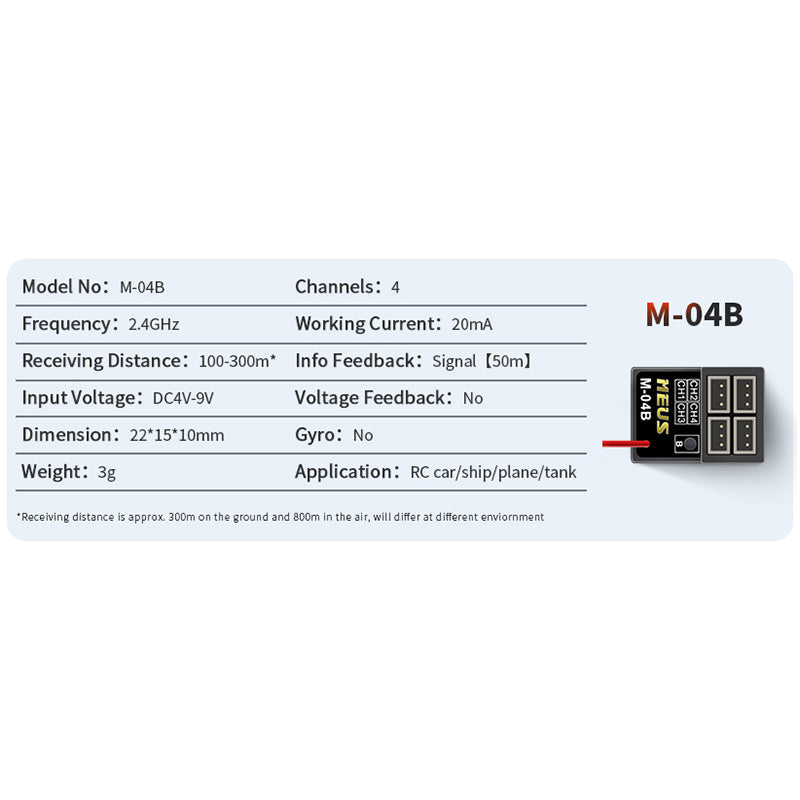

M-04B Receiver's Specifications:
- Model Number: M-04B
- Channels: 4
- Frequency range: 2.4GHz
- Working current: 20mA
- Receiving distance: 100-300m
- Info Feedback: Signal (50m)
- Input voltage: DC 4V-9V
- Voltage Feedback: No
- Dimensions: 22*15*10mm
- Gyro: No
- Weight: 3g
- Application: RC cars, RC boats, RC tanks, etc.

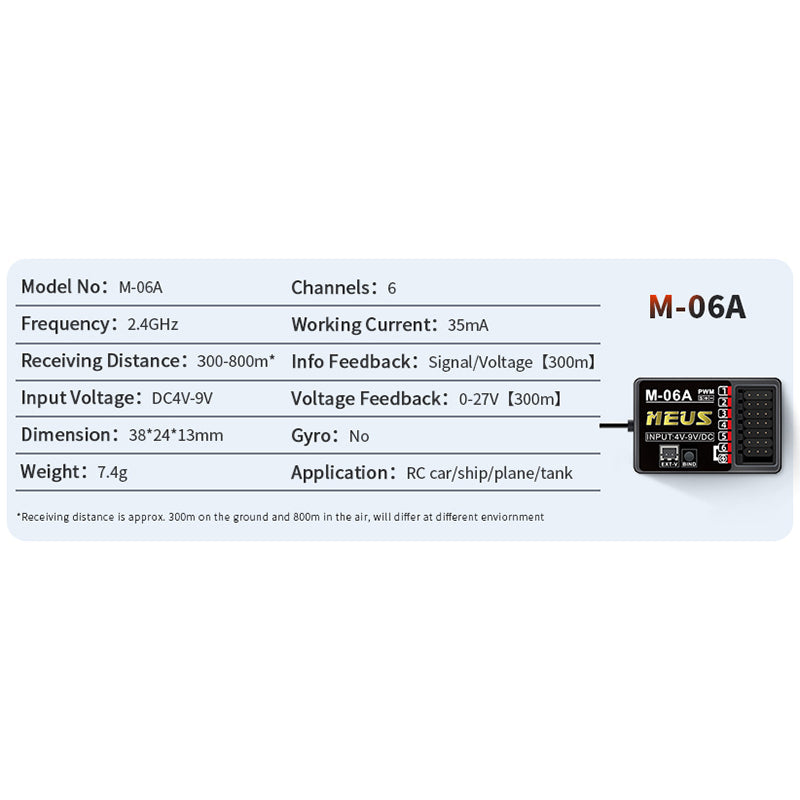

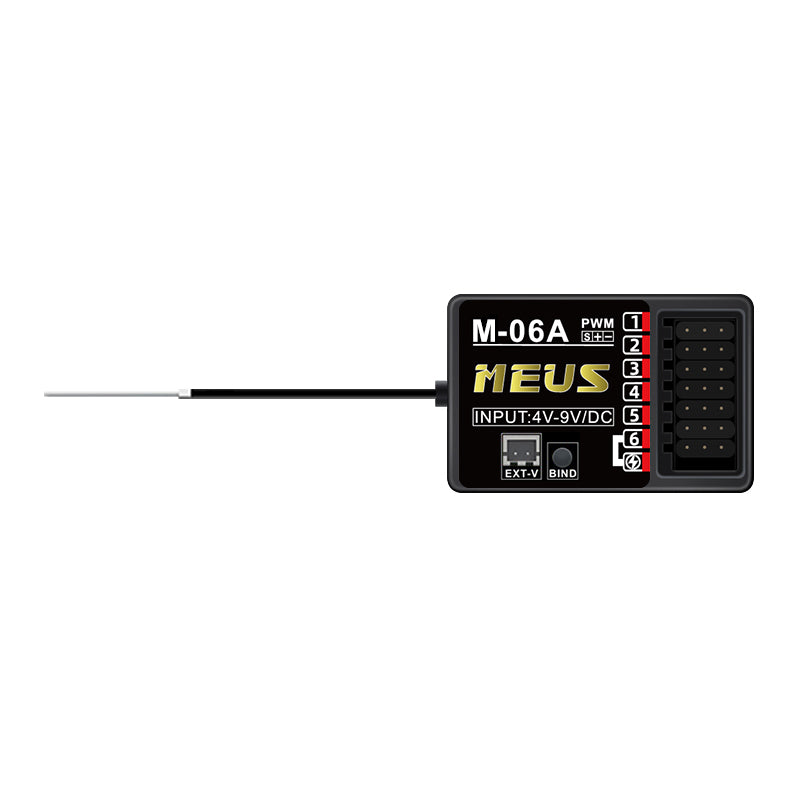

M-06A Receiver's Specifications:
- Model Number: M-06A
- Channels: 6
- Frequency range: 2.4GHz
- Working current: 35mA
- Receiving distance: 300-800m
- Info Feedback: Signal/Voltage (300m)
- Input voltage: DC 4V-9V
- Voltage Feedback: 0-27V(300m)
- Dimensions: 38*24*13mm
- Gyro: No
- Weight: 7.4g
- Application: RC cars, RC boats, RC tanks, etc.

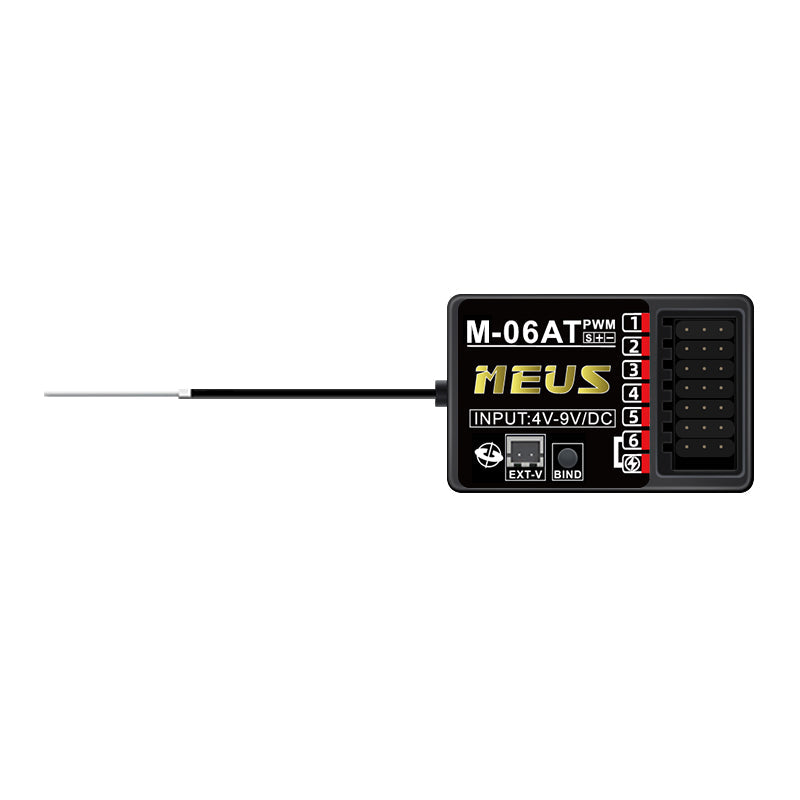

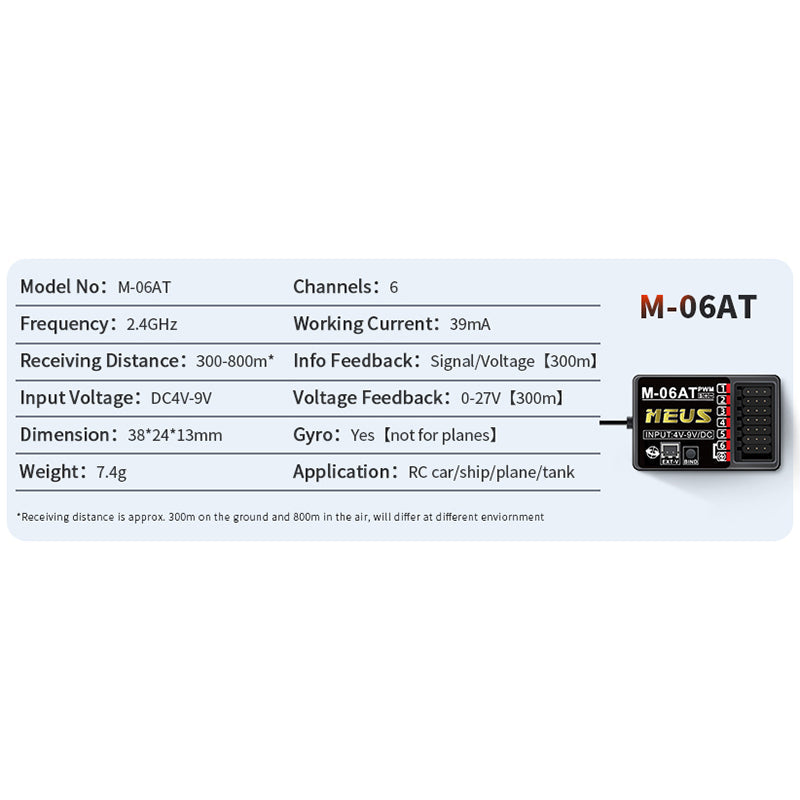

M-06AT Receiver's Specifications:
- Model Number: M-06AT
- Channels: 6
- Frequency range: 2.4GHz
- Working current: 39mA
- Receiving distance: 300-800m
- Info Feedback: Signal/Voltage (300m)
- Input voltage: DC 4V-9V
- Voltage Feedback: 0-27V(300m)
- Dimensions: 38*24*13mm
- Gyro: Yes (not for planes)
- Weight: 7.4g
- Application: RC cars, RC boats, RC tanks, etc.
